ERH Electric Radiant Heaters

Celmec Heatray ERH

Non-glowing, aesthetically refined radiant heaters provide soft, low-intensity warmth with a slimline profile.

heatray - ERHOur heatray ERH provides superior close proximity heating in both indoor and outdoor settings. Its slimline profile and no glare design make it aesthetically refined yet unobtrusive, and its low-intensity warmth is ideal for lower under cover areas protected from the wind.

  • Superior Radiant Heat

    Non-glowing, low intensity black heat provides comfortable warmth absorbed by people and objects.

  • Refined Aesthetics

    Slimline, elegant design complements architectural surroundings.

  • Designed For Protected Outdoors

    Withstand the elements with IPX5 waterproof rating along with robust material construction and optional rain shield for exposed outdoor applications.

  • Benchmark Performance

    E-Ceramic face is scratch proof, maximising heat output with a highly stable form and durable finish.

  • Flexible Installation

    Range of recessed, ceiling & wall mounting options. Mounting height of 2.3–2.7m with min. 80mm above heater clearance.

  • Customised Control

    Individual and group ‘zone’ control options provide targeted heating only where and when needed.

  • Umbrella Integration

    Designed to be integrated with our Heatray Umbrella Systems for comprehensive outdoor weather protection and comfort.

Heatray - ERH
Product Model
Name
ERH
Main image
ERH
Diagrams
Sub model name
ERH 1200
Sub model note
1200 Watt Heater
Sub model image
ERH 1200
Description
  • Size 950L x 150W x 45H.
  • Mounting height 2300-2500mm.
  • Coverage 2.2-3.0 sqm.
  • IPX5 rated + custom Rain Shield available for exposed outdoor applications.
Sub model name
ERH 1500
Sub model note
1500 Watt Heater
Sub model image
ERH 1500
Description
  • Size 950L x 150W x 45H.
  • Mounting height 2300-2700mm.
  • Coverage 2.5-4.0 sqm.
  • IPX5 rated + custom Rain Shield available for exposed outdoor applications.
Sub model name

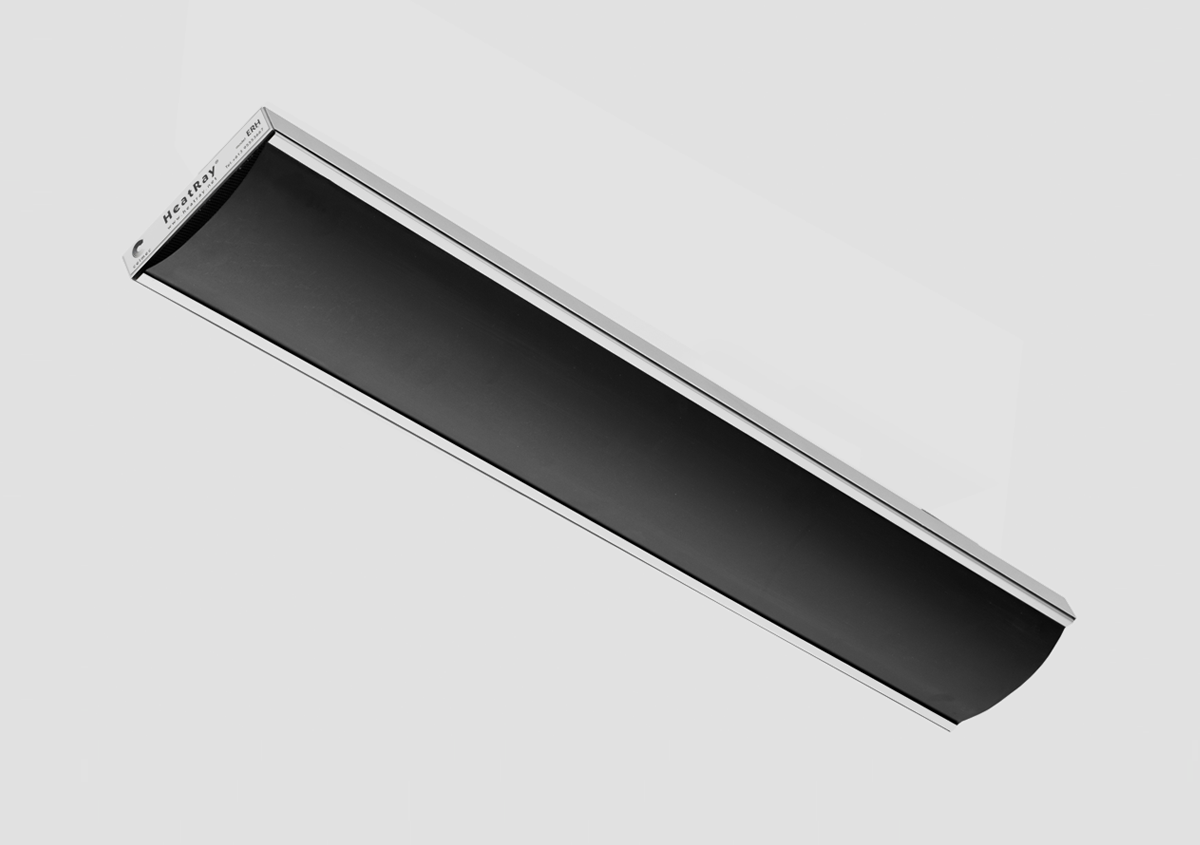

ERH 1800
Sub model note
1800 Watt Heater
Sub model image
ERH 1800
Description
  • Size 950L x 150W x 45H.
  • Mounting height 2300-2700mm.
  • Coverage 3-5 sqm.
  • IPX5 rated + custom Rain Shield available for exposed outdoor applications.
Name
MOUNTING OPTIONS
Main image
MOUNTING OPTIONS
Diagrams
Sub model name
Tube Suspension
Sub model note
Single or Double Unit
Sub model image
Tube Suspension
Description
  • Standard 900mm drop with custom lengths available.
  • Forward clearance from flammables min. 1500mm.
  • Side clearance to wall min 80mm.
Sub model name
Mounting Brackets
Sub model note
Wall or Ceiling Mount
Sub model image
Mounting Brackets
Description
  • Standard 80, 140, 250 & 400mm offset lengths.
  • Forward clearance from flammables min. 1500mm.
  • Side clearance to wall min 80mm.
Sub model name
Recessed Ceiling Unit
Sub model note
Flush Mount
Sub model image
Recessed Ceiling Unit
Description
  • Suitable for plasterboard or similar ceiling systems with a height of 2500-2700mm.
  • Ceiling cavity clearance of min. 150mm.
Sub model name
Chain Suspension
Sub model note
Overhead Mount
Sub model image
Chain Suspension
Description
  • Standard 900mm drop with custom lengths available.
  • Forward clearance from flammables min. 1500mm.
  • Side clearance to wall min 80mm.
Name
UMBRELLA INTEGRATION
Main image
UMBRELLA INTEGRATION
Diagrams
Sub model name
Square Umbrellas
Sub model note
4 to 8 ERH Units
Sub model image
Square Umbrellas
Description
  • Dimensions 3180L x 3180W x 3350H (2300H under canopy clearance)
    to 5055L x 5055W x 3660H (2400H under canopy clearance).
  • 8 to 24 person capacity.
Sub model name
Rectangular Umbrellas
Sub model note
4 to 8 ERH Units
Sub model image
Rectangular Umbrellas
Description
  • Dimensions 4550L x 3180W x 3510H (2300H under canopy clearance)
    to 5300L x 3755W x 3605H (2300H under canopy clearance).
  • 16 to 18 person capacity.
Sub model name
Truncated Square Umbrella
Sub model note
4 to 8 ERH Units
Sub model image
Truncated Square Umbrella
Description
  • Dimensions 4295L x 4295W x 3360H (2300H under canopy clearance).
  • 16-person capacity.
Name
CONTROL OPTIONS
Main image
CONTROL OPTIONS
Diagrams
Sub model name
Control Modules
Sub model note
Zone control of 4, 8 or 12 heaters
Sub model image
Control Modules
Description
  • Dimensions 375W x 220H x 100D (1Ph).
  • Safety cut-out circuit protection, low Amp switching, two-zone control & separate lighting circuit.
  • Optional 2Ph and 3Ph control modules available.
Name
SPECIAL APPLICATIONS
Main image
SPECIAL APPLICATIONS
Diagrams
Sub model name
Column Heatray Stand (CHS)
Sub model note
Indoor & Outdoor
Sub model image
Column Heatray Stand (CHS)
Description
  • Made from marine grade stainless Steel SAE 316 suitable for seaside use.
  • Concealed wiring.
  • Dimensions 1070W x 1660D x 2340H (2050 clearance under arms)
Sub model name
Recessed Ceiling Units
Sub model note
with integrated lighting
Sub model image
Recessed Ceiling Units with integrated lighting
Description
  • Suitable for plasterboard or similar ceiling systems with a height of 2500-2700mm.
  • Ceiling cavity clearance of min. 150mm.
